US Warehouse Racking Projects
Well-executed racking ensures safety, compliance, space optimization. Covers full lifecycle: planning, permits, design, install, maintenance.
1. Planning Phase
- Needs: pallet density, SKU volume, picking speed, FIFO/LIFO, aisle width, forklift type
- Site: floor load, ceiling height, fire clearances
- Compliance: state/local codes, OSHA
- Budget: upfront + long-term
2. Permits & Compliance (Non-Negotiable)
| Permit Type | Applicability | Issuing Authority | Key Docs |
|---|---|---|---|
| Building | Racking >8ft tall or >500 sq ft | Local Building Dept | Site plans, engineering drawings, load calcs |
| Fire Safety | All racking systems | Local Fire Marshal | Fire suppression, aisle width, flammable storage |
| OSHA Certification | All industrial racking | OSHA (federal/state) | Inspection reports, training records |
Process: Submit PE-stamped designs → pay fees ($200–$2k+) → pre-install inspection → approval (2–6 weeks urban).
State notes: CA/TX require seismic permits. Retrofits need amendments.
Penalties: $1k/day (OSHA) up to $10k for fire violations.
3. Design & Engineering
- Adhere to RMI standards (Rack Manufacturers Institute)
- Load: static + dynamic, min 1.5x safety factor
- Seismic: mandatory in CA, OR, WA
- Aisle: OSHA min 4ft (pedestrian), 10ft (forklift)
- Steel: A36 or A572
4. Installation & Inspection
- Hire RMI-certified installers

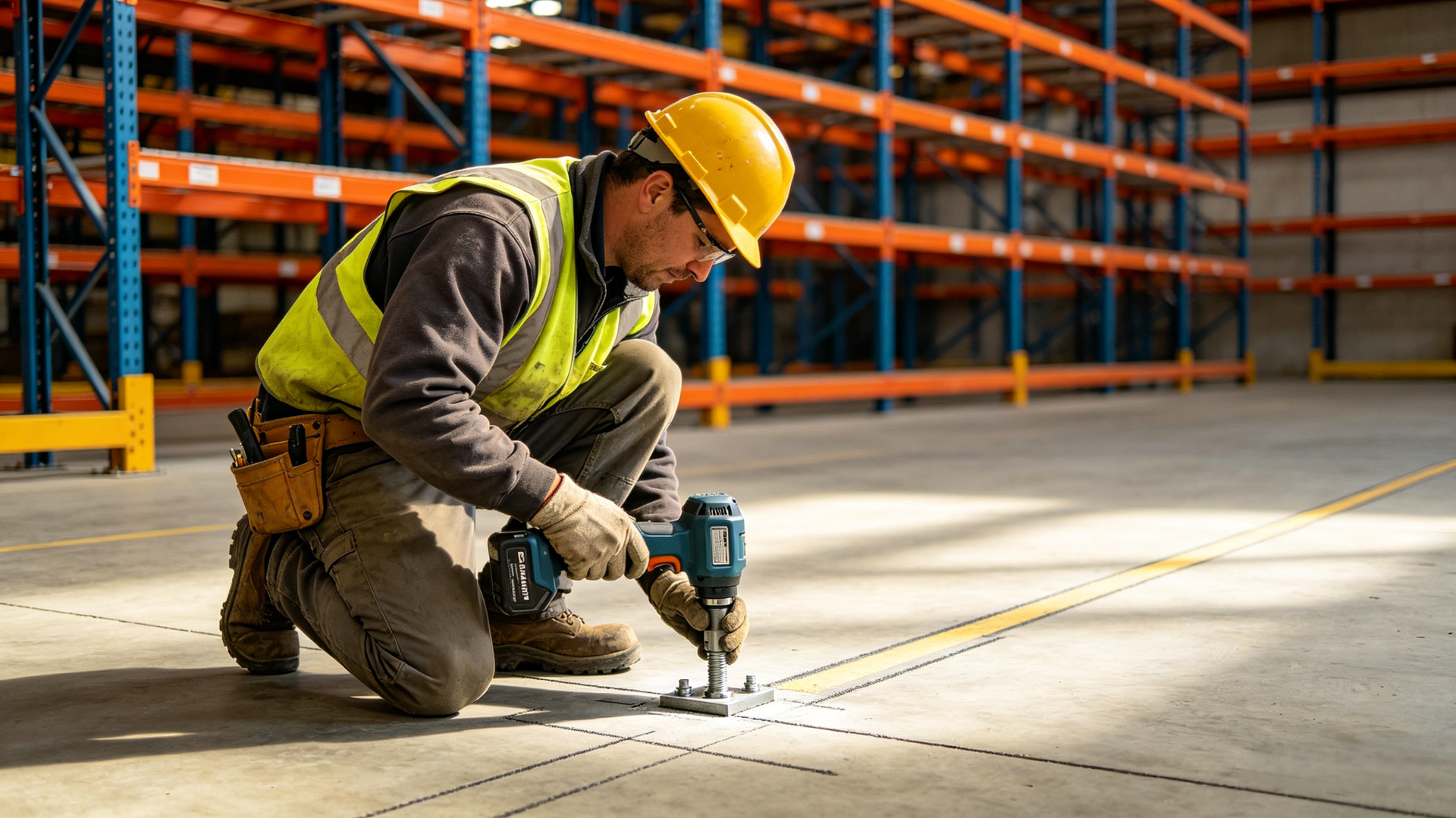

- Anchor: 3/4″ bolts, 12″ deep
- Post-install: 3rd-party RMI audit + OSHA walkthrough + permit sign-off
5. Maintenance & Ongoing Compliance
| Task | Frequency | Responsible |
|---|---|---|
| Visual checks (bends, loose bolts) | Weekly | Ops team |
| Structural audit (load testing) | Quarterly | Licensed engineer |
| Permit renewal | Annually | Facility manager |
| Anchor bolt tightening | Bi-annually | Certified tech |
Rules: Never exceed rated load. Repair damage within 24h. Document everything.
6. Considerations by Warehouse Size
| Size | Daily Orders | Racking Type | Permit Focus | Budget Split |
|---|---|---|---|---|
| Small (<10k sq ft) | 0–500 | Selective (8ft) | Basic building/fire | 60% mat, 20% labor, 10% permits, 10% maint |
| Mid (10k–50k) | 500–5k | Drive-in + selective | Seismic, fire safety | 50% mat, 25% labor, 15% permits, 10% maint |
| Large (>50k) | 5k+ | AS/RS + pallet flow | Full permits, seismic eng | 40% mat, 30% labor, 20% permits/eng, 10% maint |
7. Cost & Tips
- Permits: 5–15% of budget (higher in CA/NY/IL)
- Bulk buying: save 10–15% (suppliers: UNARCO, Ridg-U-Rak)
- Corrosion coating: saves 20% maint over 5 years
- Avoid over-engineering seismic unless required
Final Thoughts
Prioritize planning, permits, RMI standards, and maintenance. Partner with licensed engineers and RMI-certified installers.
