US Warehouses Thermal Label Complete Guide
Thermal paper prints shipping labels, barcodes, pick lists without ink. Critical for US warehouse speed and compliance.
1. Types
| Type | Durability | Cost | Best For |
|---|---|---|---|

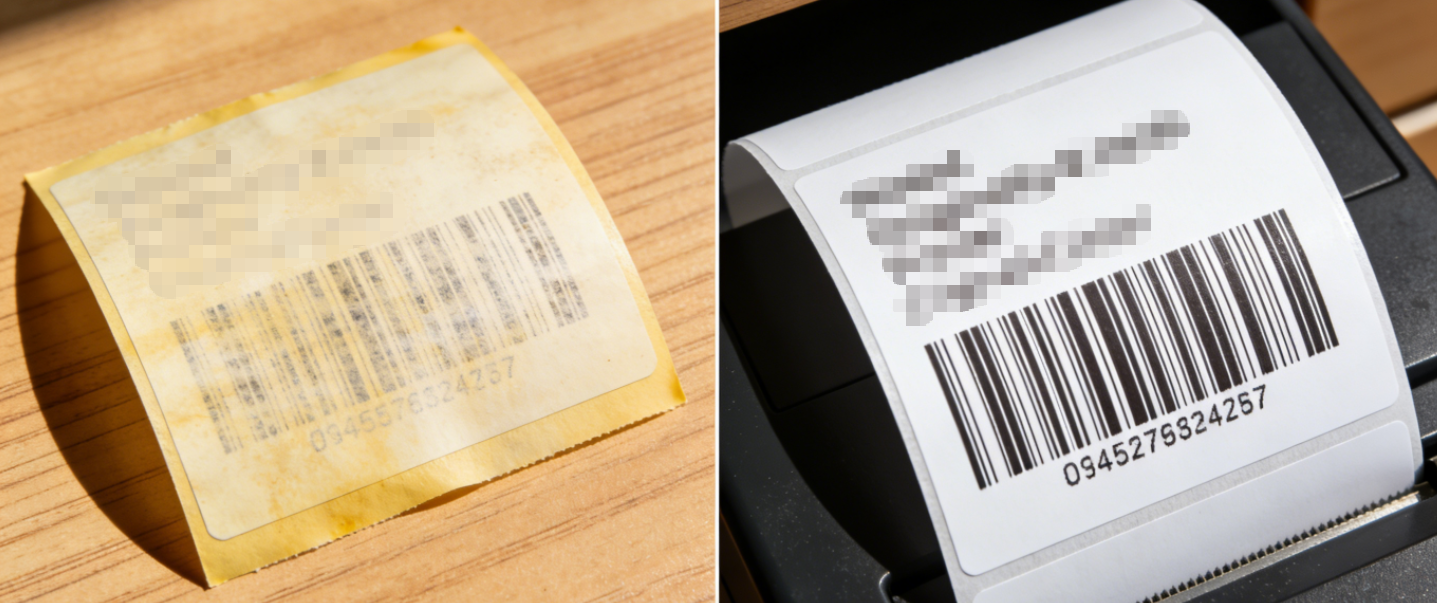

| Direct thermal | Fades in months | Low | Short-term (shipping labels, pick lists) |
| Thermal transfer | Lasts 3+ years | Higher + ribbon | Long-term (inventory, asset tags) |
Grades:
- Grade B (low volume, <500 orders/day): fades 6–12 mo
- Grade A (mid volume, 1k–5k orders/day): lasts 1–2 years
- Premium (5k+ orders/day): lasts 3+ years, extreme conditions
Look for water-resistant top-coat and strong acrylic adhesive.
2. Key Specs

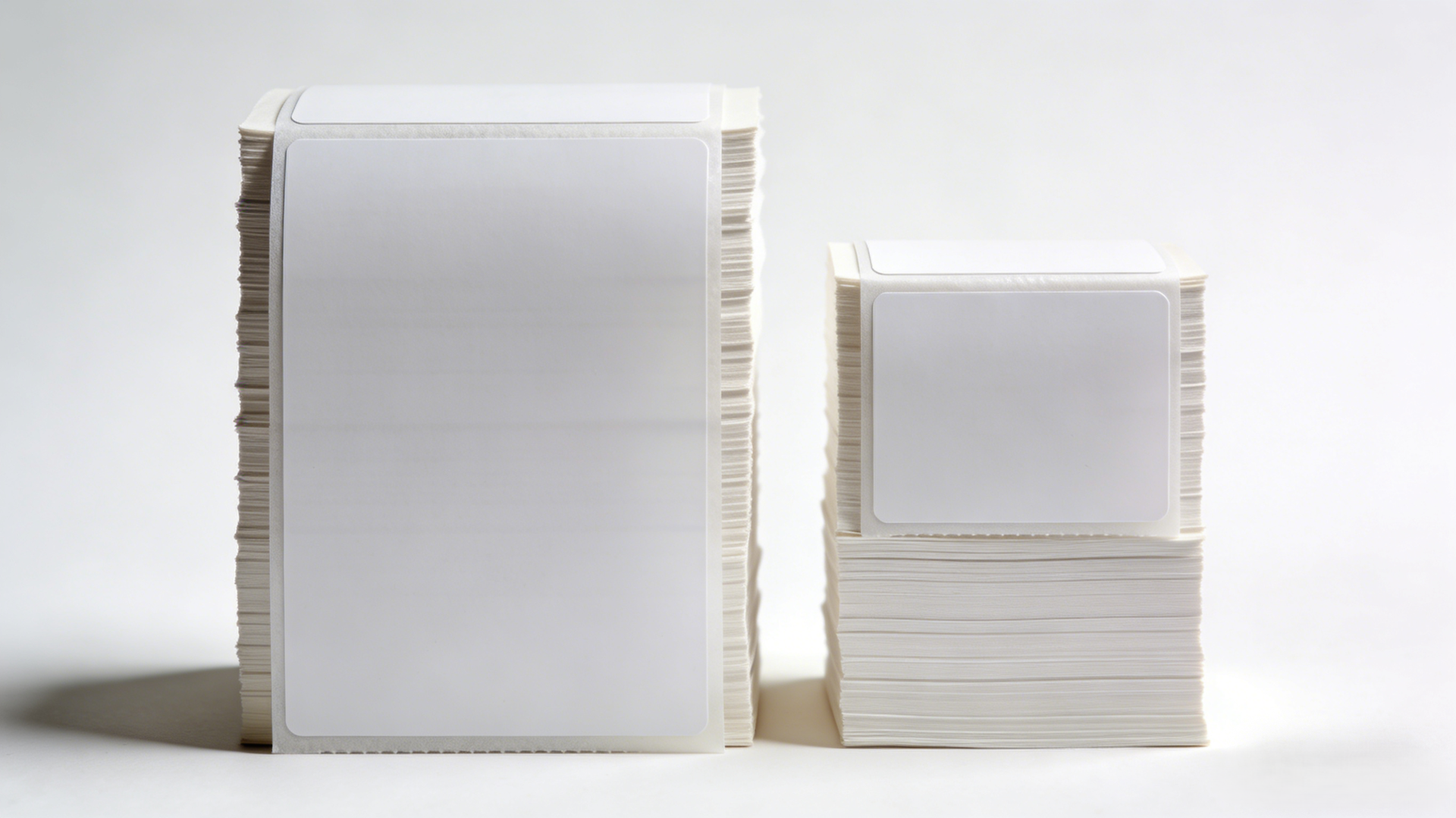

- Size: 4x6″ (standard shipping – UPS/FedEx/USPS), 3x2″ (small tags), 4x8″ (pallets)
- Core: 1″ (desktop printers) or 3″ (industrial printers)
- Grammage: 80–90 g/m² (standard), 100+ g/m² (heavy-duty)
3. Environmental Factors
- Heat: direct thermal fades quickly >90°F → use thermal transfer or premium coated
- Cold: below 32°F makes paper brittle → store at 50–75°F
- Humidity: water-resistant top-coat & sealed storage
- UV light: direct thermal fades in days → thermal transfer or UV-protected paper
4. Compliance & Compatibility
Carrier requirements:
- UPS/FedEx: 4x6″, 203 dpi (FedEx Express needs 300 dpi)
- USPS: 4x6″ direct thermal works, thermal transfer for international
BPA-free: Required in CA, NY, WA. Choose BPA-free paper for regulated states.
5. Cost & Suppliers
- Buy in bulk (10+ rolls = 10–15% off)
- Larger rolls (500+ labels) reduce changeovers
- Shelf life: 1–2 years – don’t overstock
6. Scenario Comparison
| Warehouse Size | Recommended Paper |
|---|---|
| Small e‑commerce (500–1k orders/day) | Grade B direct thermal, 4x6″, 1″ core, 80 g/m², BPA‑free |
| Large fulfillment (5k+ orders/day) | Premium thermal transfer, 4x6″, 3″ core, 100 g/m², BPA‑free |
| Feature | Direct Thermal | Thermal Transfer |
|---|---|---|
| Print longevity | 6–12 months | 3+ years |
| Cost per label | $0.01–0.02 | $0.03–0.05 + ribbon |
| Best for | Short-term labels | Long-term labels |
| Environmental resistance | Low | High |
7. Storage & Maintenance
Storage:
- 50–75°F, 40–60% humidity, sealed containers
- Avoid stacking heavy objects, use FIFO
Printer maintenance:
- Clean print head every 5–10 rolls (isopropyl alcohol)
- Calibrate after paper change
- Adjust pressure; replace worn heads/rollers every 1–2 years
8. Recommended Configurations
| Daily Orders | Budget | Paper Type | Specs |
|---|---|---|---|
| 0–500 | Low | Grade B direct (BPA‑free) | 4x6″, 1″ core, 80 g/m², 250 labels/roll |
| 500–5k | Mid | Grade A direct (BPA‑free) | 4x6″, 3″ core, 80 g/m², 500 labels/roll |
| 5k+ | High | Premium thermal transfer (BPA‑free) | 4x6″, 3″ core, 100 g/m², 1k labels/roll |
| Any | Eco | BPA‑free premium direct | 4x6″, 1/3″ core, 80–100 g/m² |
Final Thoughts
Balance cost, durability, and carrier compatibility. Store properly, maintain printers. Right thermal paper keeps labels scannable and operations smooth.
